REAR BLADES

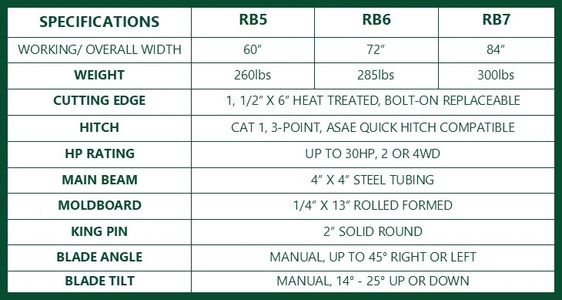

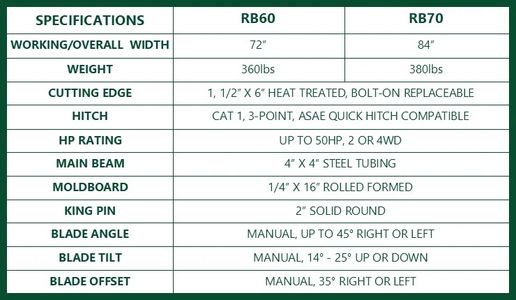

    REAR BLADE SPECIFICATIONS

    Small Rear Blade

    Medium Rear Blade

    Medium Rear Blade

    The most versatile rear blades on the market today with angle tilt features normally found on large expensive rear blades.  Extremely versatile for dirt work, snow removal and clean up.  Simple, yet very well built.

    Medium Rear Blade

    Medium Rear Blade

    Medium Rear Blade

    Features:

    • Includes slide up and down parking stand.
    • All welded units - no assembly required.
    • We will powder coat to match most common tractor colors at no additional charge!

    EXPANDED PARTS VIEW

    SMALL REAR BLADE (pdf)

    Download

    MEDIUM REAR BLADE (pdf)

    Download

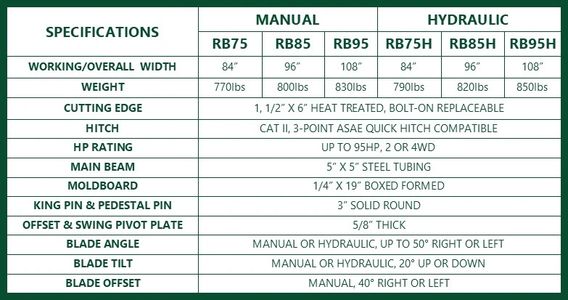

    REAR BLADE SPECIFICATIONS

    Cat II Rear Blade

    Cat II Rear Blade

    Cat II Rear Blade

    The Cammond blades are easily set for swing off-set, tilt and angle, change ditching or grading angles by just pulling a pin.  The heavy duty design is rugged, reliable assuring years of trouble-free use.

    Features:

    •  Manual or hydraulic (cylinder not included) adjustment option:
    • -Hydraulic Tilt options requires a 3" x 8" cylinder.
    • -Hydraulic angle option requires a 3" x 14" cylinder.
    • Optional gauge wheel available:
    • -2" x 6" cylinder hoses
    • -Single or dual-wheel (6" x 9" laminated tire).
    • Designed for mid-size tractors used for rugged projects
    • Moldboard is rolled formed with reinforced box.
    • Heavy 3-point design for strength.
    • Includes fold away parking stand.
    • All welded units - no assembly required.
    • We will powder coat to match most tractor colors at no additional charge!

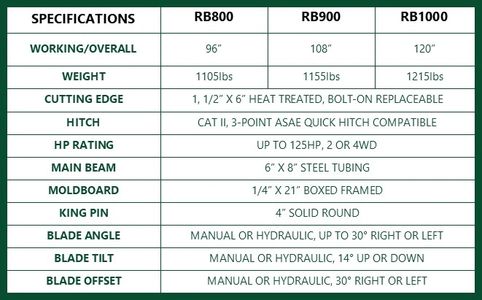

    Large Rear Blade

    Cat II Rear Blade

    Cat II Rear Blade

    These Cammond Rear Blades are the answer to your high horsepower earth-moving requirements.  These blades are available in complete hydraulic, complete manual or any combination of functions.  The heavy duty frame is rugged and reliable.  These blades are built to last.

    Features:

    • Manual, hydraulic (cylinder not included) or any combination of adjustment options:
    • -Hydraulic options: Tilt (3" x 8" cylinder), Angle (3" x 14" cylinder, Offset (3" x 14" cylinder)
    • -Optional gauge wheel available: 2" x 6" cylinder and hoses, single or dual-wheel (6" x 9" laminated tire)
    • Heavy 3-point design for strength.
    • Moldboard is rolled formed with reinforced box.
    • Includes fold away parking stand.
    • All welded units - no assembly required.
    • We will powder coat to match most common tractor colors at no additional charge!

    EXPANDED PARTS VIEW

    CAT II REAR BLADE (pdf)

    Download

    LARGE REAR BLADE (pdf)

    Download
