BOX SCRAPERS

STANDARD BOX SCRAPER

MODEL - BS72

    BOX SCRAPER SPECIFICATIONS

    ECONOMY BOX SCRAPERS/BOX BLADES

    ECONOMY BOX SCRAPERS/BOX BLADES

    ECONOMY BOX SCRAPERS/BOX BLADES

    The Economy Box Scraper and Box Blades are designed for those who need  light but durable scraper.

    Features:

    • Shanks are heat treated with replaceable tips, two settings with "L" pin for quick manual adjustment.
    • Side plates are contoured to insure smooth, level pull.
    • All welded units- no assembly required
    • We will powder coat to match most common tractor colors at no additional cost.

    STANDARD BOX SCRAPERS

    ECONOMY BOX SCRAPERS/BOX BLADES

    ECONOMY BOX SCRAPERS/BOX BLADES

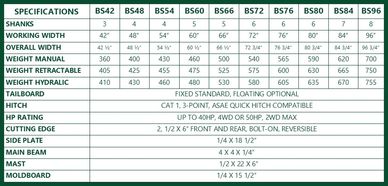

    These Cammond Scrapers look good and work hard!  Our Box Scrapers are ideal for landscaping, grading, back filling, scarifying, road maintenance and your general material moving needs.  Our Scrapers have a clean modern design that just "loos better" on today's modern tractors.

    Features:

    • Shanks have four height settings with "L" pin for quick adjustment
    • The main beam is set high to provide a clear unobstructed pull through to the back plate.
    • The placement of the shank behind the mainbeam allows for a closer coupling of the scraper to the tractor for better scraper control and also eliminates shanks hotting tractor tires.
    • Shank pockets provide strength and support.
    • Contoured side plates and back plate design insures the optimal angle of attack to insure a smooth and level pull.
    • Side plates are extended beyond the moldboard to help contain soil when "back-filling".
    • All welded units- no assembly required
    • We will powder coat to match most common tractor colors at no additional cost.

    CORRAL SCRAPERS

    ECONOMY BOX SCRAPERS/BOX BLADES

    CORRAL SCRAPERS

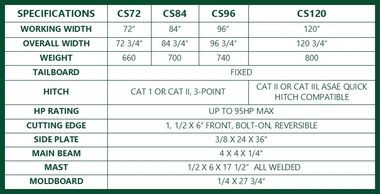

    The Cammond Corral Scraper is a proven design for moving a great deal of material fast.  The Corral Scraper is designed for clean-up applications such as corrals, feedlots, arena and other general applications.

    Features:

    • All welded units- no assembly required
    • We will powder coat to match most common tractor colors at no additional cost.

    EXPANDED PARTS VIEW

    STANDARD BOX BLADES (pdf)

    Download

    CORRAL SCRAPER (pdf)

    Download

    BOX SCRAPER SPECIFICATIONS

    2C1 INDUSTRIAL BOX SCRAPERS

    2C1 INDUSTRIAL BOX SCRAPERS

    2C1 INDUSTRIAL BOX SCRAPERS

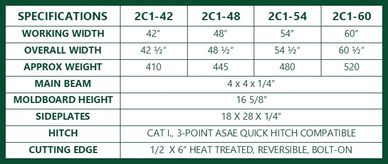

    The Cammond 2C1 series scrapers are designed especially for small compact tractors.  Available in widths of 42", 48", 54" & 60" for tractors from 15 to 40 hp, 2 or 4WD.  Available in hydraulic version only.

    Features:

    • Fixed or floating tailboard options.
    • Hydraulic version includes cylinder.
    • All welded units- no assembly required
    • We will powder coat to match most common tractor colors at no additional cost.

    2C2 INDUSTRIAL BOX SCRAPERS

    2C1 INDUSTRIAL BOX SCRAPERS

    2C1 INDUSTRIAL BOX SCRAPERS

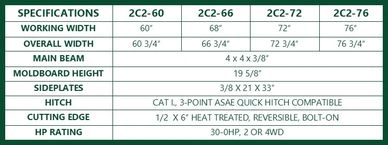

    The Cammond 2C2 series scarpers are ideal for landscape, terrace, back-fill, scarify, level or general clean-up.  Available in widths of 60", 66", 72" & 76" for tractors from 30 to 60HP, 2 0r 4WD.  Available in hydraulic, mechanical and manual versions.

    Features:

    • Fixed or floating Tailboard option.
    • Hydraulic version includes cylinder.
    • All welded units- no assembly required
    • We will powder coat to match most common tractor colors at no additional cost.

    4C2 INDUSTRIAL BOX SCRAPERS

    2C1 INDUSTRIAL BOX SCRAPERS

    4C2 INDUSTRIAL BOX SCRAPERS

    The Cammond 4C2 series scrapers are extremely rugged and ideal for construction site preparation and clean-up, trench back-filling and demanding material handling.  Available in hydraulic, manual and low profile versions.

    Features:

    • Floating tailboard standard.
    • Hydraulic version includes cylinder.
    • All welded units- no assembly required
    • We will powder coat to match most common tractor colors at no additional cost.

    EXPANDED PARTS VIEW

    2C1 INDUSTRIAL BOX SCRAPER (pdf)

    Download

    2C2 INDUSTRIAL BOX SCRAPER (pdf)

    Download

    4C2 INDUSTRIAL BOX SCRAPER (pdf)

    Download

    4C4 Industrial Box Scrapers

    4C4 Industrial Box Scrapers

    4C4 Industrial Box Scrapers

    The Cammond 4C4 series scrapers are extremely rugged and ideal for construction site preparation and clean-up, trench back-filling and demanding material handling.  Available in hydraulic, manual and low profile versions.

    Features:

    • Fixed Tailboard Standard.
    • Hydraulic version includes cylinder.
    • All welded units- no assembly required
    • We will powder coat to match most common tractor colors at no additional cost.

    4C5 Industrial Box Scrapers

    4C4 Industrial Box Scrapers

    4C4 Industrial Box Scrapers

    The Cammond 4C5 Industrial Box Scraper has a unique design that combines the ruggedness and strength of the 4C4 heavy fixed back plate and the 4C2 with floating tailboard.

    Features:

    • Tool to remove tailboard locking pins and built up debris.
    • Holder for tool and tailboard locking pins welded on mast.
    • Butterfly style bracket at top and bottom of scarifier beam for added shank wear and support.
    • Heavy clevis type tailboard locking system with 3/4" easy to remove pin.
    • Brackets welded to the front back plate to provide reinforcement for front cutting edge.
    • 1 3/8" hook with 3" block shank bar locking system.
    • Mast wraps around three sides of main beam.
    • We will powder coat to match most common tractor colors at no additional cost.

    EXPANDED PARTS VIEW

    4C4 INDUSTRIAL BOX SCRAPER (pdf)

    Download

    4C5 INDUSTRIAL BOX SCRAPER (pdf)

    Download
