DRAG SCRAPERS

COMPACT DRAG SCRAPER

MODEL - DS6 W/ TILT AXLE

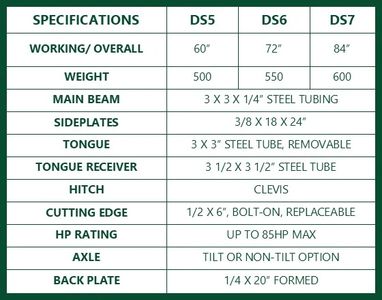

    DRAG SCARPER SPECIFICATIONS

    Compact Drag Scraper

    All-Purpose and High Capacity Drag Scraper

    All-Purpose and High Capacity Drag Scraper

    The perfect size scraper to level playing fields, clean ditches, create drainage, repair paths and roads, spread gravel and other coverings and a variety of other tasks.

    Features:

    • All size drags include: bucket, tongue, clevis hitch, wheels and tires.
    • A hitch and an axle or axle system must be selected to be a functioning unit (lift and/or tilt functions require hydraulic cylinders).
    • Any item(s) can be purchased separately as replacements or stock.
    • Strong tongue receiver with a removable tongue provides ease of transportation and storage.
    • Highly maneuverable and makes turns with ease, loaded or unloaded.
    • The perfect size for use on athletic fields and parks.
    • Available with tilt-axle option (does not include cylinder)
    • We will powder coat to match most common tractor colors at no additional charge!

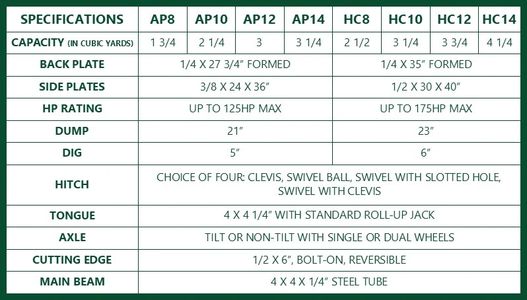

    All-Purpose and High Capacity Drag Scraper

    All-Purpose and High Capacity Drag Scraper

    All-Purpose and High Capacity Drag Scraper

    These scrapers are designed for commercial and industrial applications requiring the capacity and strength to do the job.  When moving large amounts of material in general agricultural or construction projects with high horsepower tractors, these scrapers will fit the bill.

    Features:

    • All size drags include: bucket, tongue, clevis hitch, wheels and tires.
    • An axle system must be selected to be a functioning unit (lift and/or tilt functions require hydraulic cylinders).
    • Any item(s) can be purchased separately as replacements or stock.
    • Available in widths of 8', 10', 12' and 14'.
    • Designed with removable 4" z 4" tube tongue with a 5" x 5" tube receiver providing increased strength at the point of the most stress to insure stability for turns and heavy loads.
    • Choice of four interchangeable hitches: swivel with slotted hole, swivel with clevis, swivel ball and clevis.
    • Removable axle system features 4" x 2" tube axle arms to insure lateral stability.
    • Axle assembly is interchangeable with your choice of axle: single or dual wheels, tilt or non-tilt axle.
    • Axle selection includes wheels and tires.
    • Roll-up jack stand on tongue.
    • Optional: Bolt-on weight box (not available with dual wheel axle), factory installed shank bar, hydraulic hoses, cylinder transport locks for lift and tilt.
    • We will powder coat to match most common tractor colors at no additional charge!

    EXPANDED PARTS VIEW

    COMPACT DRAG SCRAPER (pdf)

    Download

    AP.HC DRAG SCRAPER (pdf)

    Download

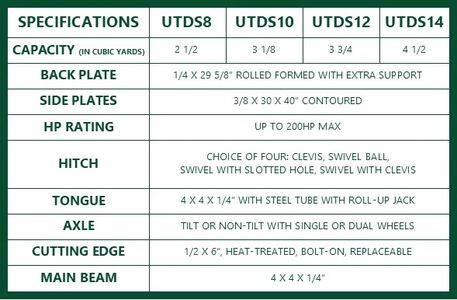

    DRAG SCARPER SPECIFICATIONS

    Utility Drag Scraper

    Industrial and Heavy Duty Drag Scraper

    Industrial and Heavy Duty Drag Scraper

    A proven workhorse!

    Features:

    • All size drags include: bucket, tongue, clevis hitch, wheels and tires.
    • A hitch and an axle or axle system must be selected to be a functioning unit (Lift and/or tilt functions require hydraulic cylinders).
    • Any item(s) can be purchased separately as replacements or stock.
    • Choice of four interchangeable hitches: swivel with slotted hole, swivel with clevis, swivel ball and clevis.
    • Axle assembly is interchangeable with your choice of axle: single or dual wheels, tilt or non-tilt axle.
    • 4" x 4" tubing with 5" x 5" tube receiver with additional support bracing to provide extra strength and durability at the major stress points.
    • Roll-up jack standard on tongue.
    • Rolled formed moldboard with 4" square tubing braces across top and 4" x 2" rib bracing on back.
    • Optional Components: Hydraulic cylinders and hoses, cylinder transport locks for lift and tilt.
    • We will powder coat to match most common tractor colors at no additional charge!

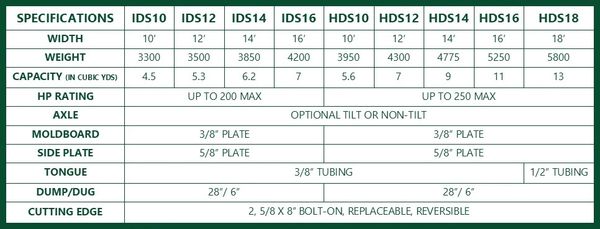

    Industrial and Heavy Duty Drag Scraper

    Industrial and Heavy Duty Drag Scraper

    Industrial and Heavy Duty Drag Scraper

    These scrapers are designed for commercial and industrial applications requiring the capacity and strength to do the job.  When moving large amounts of material in general agricultural or construction projects with high horsepower tractors, these scrapers will fit the bill.

    Features:

    • Adjustable drop forged pintle hitch standard on all models.
    • Available with tilt or non-tilt axle option
    • Tongue is supported by two 4" x 4" x 1/4" lateral support beams.
    • Removable tongue and axle for ease of shipping.
    • Dual tandem wheels (with 6 bolt hubs).
    • 4 - 11" x 15" floating tires.
    • Includes two lift cylinders and hoses (Also tilt cylinder and hoses, if required).
    • Replaceable skid plates to reduce wear on side plates.
    • No braces in the bucket that could cause material build-up.
    • Moldboard has added support across the top and bottom with external 4" x 2" steel tube ribbing.
    • Axle arms are 4" x 6" steel tubing.
    • Additional support bracing (4" x 4" x 1/4" tubing) from the main beam to the moldboard.
    • Main beam and tongue made of 5" x 7" x 3/8" tubing (HDS18 5" x 7" x 1/2").
    • IDS has a 28" dump and a 6" dig capacity.
    • We will powder coat to match most common tractor colors at no additional charge!

    EXPANDED PARTS VIEW

    UTILITY DRAG SCRAPER (pdf)

    Download

    INDUSTRIAL AND HEAVY DUTY DRAG SCRAPER (pdf)

    Download
