GRADING SCRAPERS

COMPACT MODEL W/O SHANKS

GS6-NS

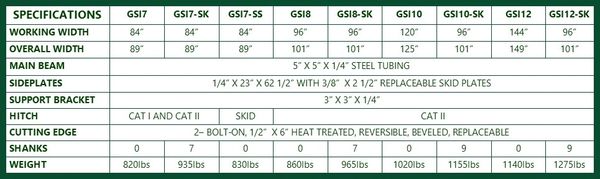

    GRADING SCRAPERS SPECIFICATIONS

    Compact Grading Scrapers

    Industrial Grading Scraper

    Industrial Grading Scraper

    The Cammond Grading Scrapers are designed to perform many different tasks, such as, landscaping, road repair, arena maintenance, etc.  Many unique features enable the operator to do a number of different tasks.  These units are very effective to loosen, aerate, and smooth the surface.  When repairing roads the unit moves material from the outer edge of the road to the center, achieving a smooth finished surface.  The deep ripping scarifier shanks will break-up the toughest soil and the dual cutting blades create a flow through churning action that will cut  out high spots, fill holes and move material.

    Features:

    • Clevis style hitch points are constructed of 1/2" plate.
    • Shanks adjust to ripping and storage position.
    • Heat treated scarifier shanks with replacement points.
    • Cutting edge bracket is adjustable with settings of 0 to 1 1/2" below side panels (preset at 1/4")
    • Front cutting blade is designed to adjust lower than the rear blade to compensate for additional wear.
    • All welded units - No assembly required.
    • We will powder coat to match most common tractor colors at no additional charge!


    Industrial Grading Scraper

    Industrial Grading Scraper

    Industrial Grading Scraper

    The Cammond Industrial Scrapers are designed similar to the compact grading scraper, but in a bigger, heavier frame.  It is also designed to loosen and smooth surfaces.  It will take down high spots and fill in low spots while moving dirt from right to left which makes it really handy on gravel driveways and even county roads.

    Features:

    • Mast is 5/8" plate with 3" x 3" x 3/8" mast spacer.
    • Top link and draw ears are 3/4" plate.
    • Heat treated scarifier shanks with replaceable points.
    • Cutting edge bracket is adjustable with settings 1" to 1 1/2" below side panels (preset at 1/4")
    • Front cutting blade is designed to adjust lower than the rear blade to compensate for additional wear.
    • All welded units - no assembly required.
    • We will powder coat to match most common tractor colors at no additional charge!

    EXPANDED PARTS VIEW

    COMPACT GRADING SCRAPER (GS) (pdf)

    Download

    INDUSTRIAL GRADING SCRAPER (GSI) (pdf)

    Download
